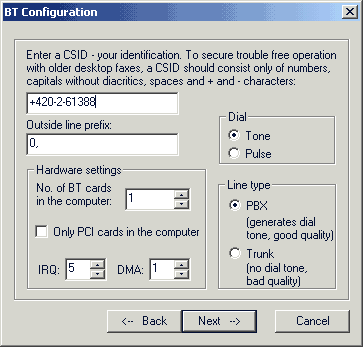

Write global configuration of all installed Brooktrout cards here. Enter carefully especially number of cards and HW configuration (IRQ, I/O), which must match real setting of the cards. We recommend use DMA channel 1, if it is free (see Windows NT Diagnostic). If not, use first higher free DMA channel.

• Outside line prefix - number which is dialed to get access out of your private exchange to public network
• Dial - dial type, Pulse for old PBX, but usually Tone dialing is used these days
• Line type - PBX (through your PBX) or Trunk (direct connection to public network)

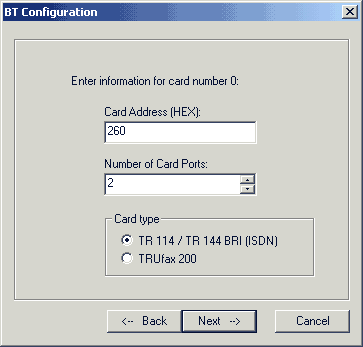

Enter detail config for every card:

• I/O address - must match card switch setting
• number of channels on the card
• card type
