umsMonitor - monitor of actual state of VoiceChange

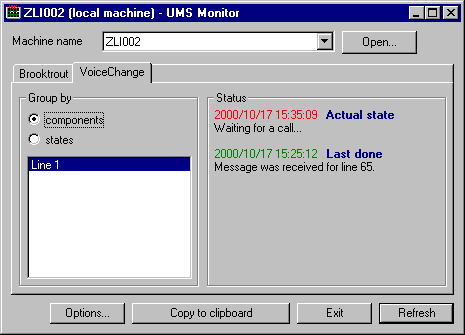

UmsMonitor is tool for monitoring actual state of Datasys UMS products. You can run it from Start Menu -> Programs -> VoiceChange -> UmsMonitor. It display informations like these:

Every supported product has its own tab. We can see a list of components on active tab. Information about selected component is displayed on the right. There is a actual state, last done or statistics.

Actual state is action, which is in progress right now. I.e. "playing a message", "sending a SMS" etc.

Last done is last fully completed action. For example - "message for line 222 was received", "SMS for 5645644644 was sent"...

Statistics show some statistic data like "Number of received messages during last hour is 2".

Messages older than ten seconds have time displayed in green color. Newer messages are red.

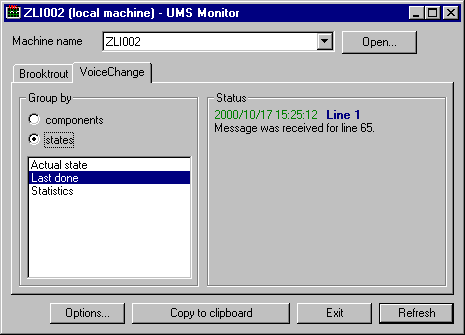

We can also select grouping by states:

In this case, only one message class is displayed (here "Last done" message), but all components of selected product are displayed.

In both modes we can use following tools:

You can switch to another (already used) computer using combobox "Machine name". If you want to connect to new computer, click "Open" button.
Button "Options..." allow you to change some of program options - color of messages, refresh interval, timeout...
Button "Copy to clipboard" copies text from actual tab into Windows clipboard so that text can be inserted for example into e-mail.
Button "Exit" will terminate UmsMonitor.
Button "Refresh" will reload actual tab.

You have to be logged on as administrator of remote computer or you have to have mapped disk from that computer, if you want UmsMonitor to work correctly and to read information from remote computer.
