VoiceChange statistics

VoiceChange allows to display and export statistic data about traffic on the lines. There are two tools located in Start menu - VoiceChange:

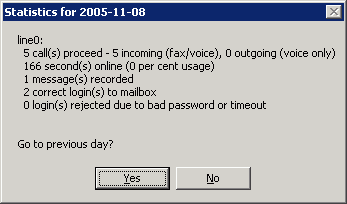

  1. VoiceChange Statistics - Display. Runs a script, which asks for VoiceChange server name and displays traffic dump on given server in current day (it is obtained from VoiceChange application log). It is possible to go through history backward by one day steps.
  2. VoiceChange Statistics - Export to Excel CSV file. Allows to export aggregate statistics for given days into Excel. You must enter VoiceChange server name, file name (if no path is specified, file will be saved into Voicechange\bin) and number of days, for which statistics will be exported (from current day back). Every line of the file contains data about one day.


VoiceChange can be configured to store statistic data into database - common.ini configuration file must contain these items:

Item Description Example
$VXScript.Modules DatabaseLogHandler module must be listed in VX module list ...|DatabaseLogHandler|...
$Module.DatabaseLogHandler.ProgID Module ProgID VXScripting.DatabaseLogHandler
$DatabaseLogHandler.DbConnString Database connection string Provider=sqloledb;Data Source=localhost;Initial Catalog=VoiceChange;Integrated Security=SSPI;
$DatabaseLogHandler.ProcNamePrefix Prefix of used stored procedures in the database. Item is optional; if not set, no prefix is used. Vx_

There must be stored procedures created in working database which will be used to save information about call being processed. Procedures can be created by No_Prefix.sql (uses no prefix) or Vx_Prefix.sql (uses Vx_ prefix) scripts. Procedures store information about call into Call, eventually Vx_Call table (its creation is part of mentioned scripts) with the following structure:

Atributte Type Description
Id int not null identity Definite call identifier
Line int not null VX line number, where call took place
Direction char(1) null Call direction: "i" - incoming, "o" - outgoing
LocalNumber varchar(32) null Local number (called number for incoming call)
RemoteNumber varchar(32) null Remote number (caller's number for incoming call)
Time datetime null Call start time
Length int null Call length in seconds
ModuleName varchar(255) null VX handling module name
MenuResults varchar(255) null Sequence of results of requests for DTMF. Individual requests (menu) are separated by semicolon.
VxmlSteps varchar(255) null Sequence of VXML dialog identifiers separated by semicolon.
TransferedToNumber varchar(32) null Number where call was transferred to by script.

Scripts for table and procedures creation you find on installation CD in VoiceChange\etc folder.
If database connection is not configured properly, stored procedures are missing or database server is not accessible, VoiceChange still works correctly; but statistics aren't stored into database.
