Problem description:

This document describes settings for Faxchange and Hicom 330H PBX for direct fax routing on ISDN lines. PBX has four cipher extension numbers.
Configuration:

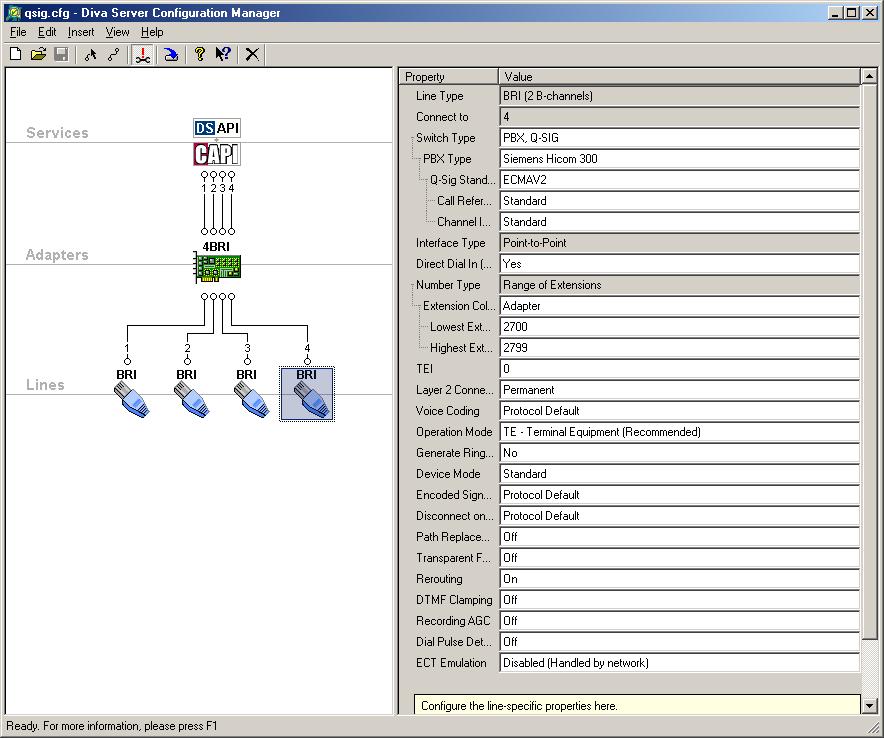

• Faxchange with Eicon Diva Server 4BRI card, i.e. 8 fax lines.
• card is connected to 4 BRI lines combined into trunk with number 2910 assigned - fax to this number is redirected to any free fax line.
• extension numbers 2700-2799 are prepared for fax routing. If fax is sent to any of these numbers, it is redirected to line 2910 and then to any free fax line. Card also knows originally dialed number 2700-2799 from ISDN communication.

Solution:

PBX settings for configuration described above:

/* HICOM 300H configuration for FAXCHANGE.
/* STMID board must be established (S0 interface)
EINR-BCSU:PER,1,3,97,"Q2163-X   ",1,0,,,,,,A;
/* Now you must create users for faxboxes in WABE (zde 2700 - 2799).
EINRICHTEN-WABE:2700&&2799,,,TLN,NEIN,,,,,,,,;
/* Create partition direction to S0 trunk.
EINRICHTEN-WABE:2910,,,QUER,NEIN,,,,,,,,;
/* Check COS, COT, COP for S0 sets.
EINR-COSSU:,1,FBKW&QVKW,,,,,,,,,,;
AEND-COSSU:COS,1,,,,,,,,,,,,"SADY";
EINRICHTEN-COP:36,,FBKW,FBKW;
AENDERN-COP:36,COPZU,,,,S2VERB,"S0/2 QUER ECMA2 OD V3.0";
EINRICHTEN-COT:36,PRIO&AERF&UASE&MVLT&AMGL&UELM&RRBN&RRFN&AULN&RWSN&SAAO&BLOC&TRCA&TSCS<MB&PRZL&GBUE&KTON;
AENDERN-COT:36,COTZU,,S2VERB,"S0/2 QUER ECMA2 OD V3.0";
/* Create bundle to fax server.
EINR-BUEND:70,"FAX SERVER        ",8,N,0,*,1;
/* Configure transmitters with ECMAV2 protocol.
EINR-TDCSU:NEU,1-03-097-1,36,36,0,0,1,7,1,"FAX SERVER  ",0,ECMAV2,1,J,0,,,,,,,,,,,,,30,VIELE,98,0,1,1,LEER,99,1,J,,,,,,16,8,S0VERB,,J,70,ZYK,J,J,0,N;
EINR-TDCSU:NEU,1-03-097-2,36,36,0,0,1,7,1,"FAX SERVER  ",0,ECMAV2,1,J,0,,,,,,,,,,,,,30,VIELE,98,0,1,1,LEER,99,1,J,,,,,,16,8,S0VERB,,J,70,ZYK,J,J,0,N;
EINR-TDCSU:NEU,1-03-097-3,36,36,0,0,1,7,1,"FAX SERVER  ",0,ECMAV2,1,J,0,,,,,,,,,,,,,30,VIELE,98,0,1,1,LEER,99,1,J,,,,,,16,8,S0VERB,,J,70,ZYK,J,J,0,N;
EINR-TDCSU:NEU,1-03-097-4,36,36,0,0,1,7,1,"FAX SERVER  ",0,ECMAV2,1,J,0,,,,,,,,,,,,,30,VIELE,98,0,1,1,LEER,99,1,J,,,,,,16,8,S0VERB,,J,70,ZYK,J,J,0,N;
/* Check reference tact.
EINRICHTEN-REFTA:SATZ,1-3-97-1,0,N,N;
EINRICHTEN-REFTA:SATZ,1-3-97-2,0,N,N;
EINRICHTEN-REFTA:SATZ,1-3-97-3,0,N,N;
EINRICHTEN-REFTA:SATZ,1-3-97-4,0,N,N;
/* Configuration of direction 70.
EINR-RICHT:LRTGNEU,70,ALLE,"FAX SERVER      ",70,98,,NEIN,FIX,FTEXT,"FAX SERVER      ",PP80,,,,,;
/* Setting of selection rule - 110 here, used in LDAT.
EINRICHTEN-LODR:110,,,,ECHOFELD,1;
EINRICHTEN-LODR:110,,,,ENDE;
EINRICHTEN-LODR:110,,,"FAX SERVER S0";
/* LDAT setting for direction 70.
EINRICHTEN-LDAT:70,ALLE,1,,70,110,1,,1,LEER,KEINE,,KEINE,1,4;
/* Setting of selection for 2910.
EINRICHTEN-LDPLN:2910,,70,1,;
/* Create fictive users for faxboxes.
EINR-SCSU:2700,,ANATE,0,0,21,21,1,1,1,1,,,0,NEIN,,,,,,,,VAR,,,,,,,,,,,,,,,,AWTLN,,,NEIN,,,,0,0;
EINR-SCSU:2701,,ANATE,0,0,21,21,1,1,1,1,,,0,NEIN,,,,,,,,VAR,,,,,,,,,,,,,,,,AWTLN,,,NEIN,,,,0,0;
.....
EINR-SCSU:2798,,ANATE,0,0,21,21,1,1,1,1,,,0,NEIN,,,,,,,,VAR,,,,,,,,,,,,,,,,AWTLN,,,NEIN,,,,0,0;
EINR-SCSU:2799,,ANATE,0,0,21,21,1,1,1,1,,,0,NEIN,,,,,,,,VAR,,,,,,,,,,,,,,,,AWTLN,,,NEIN,,,,0,0;
/* Establish fixed redirection to 2910 for all faxboxes.
EINR-ZIEL:AUL,2700,VOICE,2910,;
EINR-ZIEL:AUL,2701,VOICE,2910,;
.....
EINR-ZIEL:AUL,2798,VOICE,2910,;
EINR-ZIEL:AUL,2799,VOICE,2910,;
EINRICHTEN-ACTDA:TLN,2700,AUL,VOICE,,,,,,,,,,,,,,,,;
EINRICHTEN-ACTDA:TLN,2701,AUL,VOICE,,,,,,,,,,,,,,,,;
.....
EINRICHTEN-ACTDA:TLN,2798,AUL,VOICE,,,,,,,,,,,,,,,,;
EINRICHTEN-ACTDA:TLN,2799,AUL,VOICE,,,,,,,,,,,,,,,,;

Further information:

You can use the same procedure also for Siemens Hicom 300 a 4000 PBX.

Keywords:

PABX, ISDN, routing, Hicom, CAPI, Siemens, Hicom

If there is something unclear, send us an email to development@datasys.cz.
